Servlet Hello World Example in Eclipse IDE with Tomcat Server


Helloworld example using Servlet

In our previous tutorial we have learnt on how to create a Servlet with Eclipse IDE and Tomcat server, in this article we shall learn to run a sample hello world program using servlet to display welcome message in browser.


Library required


servlet-api-3.0.jar


Final Project Structure


HelloWorld in Servlet


Servlet



package com.servlet;

import java.io.IOException;
import java.io.PrintWriter;
import javax.servlet.ServletException;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

public class HelloWorldServlet extends HttpServlet {
	private static final long serialVersionUID = 1L;

	public void doGet(HttpServletRequest request, HttpServletResponse response)
			throws ServletException, IOException {
		PrintWriter out = response.getWriter();
	          out.println("<html>");
  	          out.println("<head><title>Hello world in Servlet</title></head>");
   	          out.println("<body>");
	          out.println("<p>Hurray!! This Servlet worked!!!</p>");
	          out.println("</body>");
    	          out.println("</html>");
	}
}



web.xml


Having created a simple servlet, Now the question arises, how the container knows which servlet is being requested by the client, the answer to this question is web.xml file that resides there on server and it have valid mappings from request to servlet. This web.xml looks something like this:


<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
 xmlns="http://java.sun.com/xml/ns/javaee" xmlns:web="http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd"
 xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd"
 id="WebApp_ID" version="3.0">

	<display-name>HelloWorldServlet</display-name>
	<servlet>
		<servlet-name>HelloWorld</servlet-name>
		<servlet-class>com.servlet.HelloWorldServlet</servlet-class>
	</servlet>
	<servlet-mapping>
		<servlet-name>HelloWorld</servlet-name>
		<url-pattern>/Hello</url-pattern>
	</servlet-mapping>
</web-app>


Every servlet in a web application must have an entry into this file within two tags and . Now let’s see these fields in details.

<servlet-name>: A name is given to the servlet within this tag; name could be any user defined value.
<servlet-class>: Here we give the name with path to exact servlet class.
<url-pattern> : Here we give the url pattern of requested url, on which the servlet will be called.

No if we want to call a servlet for helloworld, then the requested url will be like http://localhost:8089/HelloWorldServlet/helloworld. Here / helloworld is the url-pattern for servlet.


Given below is the generalized url

http://<server>:<port>/<webapp>/urlpattern


So whenever this url is requested then it will search for a url-pattern with /helloworld in web.xml, now the servlet-name to this mapping will be compared to servlet block and required class file will be called according to servlet-class tag.

So this is how web containers maps a request from a client and invoke a right servlet and right method and the dynamic response is being served to the client.


Demo


Now right click on project [Root] > Run As > Run on Server

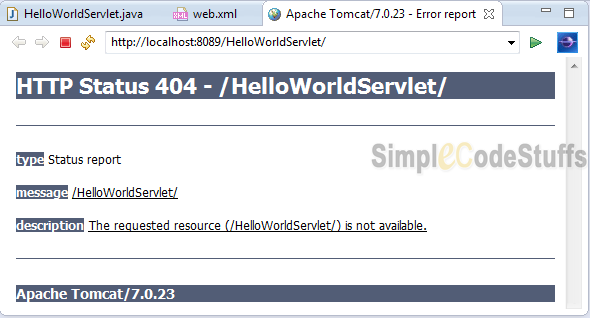

Run hello world servlet

See in the URL ‘http://localhost:8089/HelloWorldServlet/’ is our servlet application directory. Here I have got a 404 page since i have not configured any welcome page in my web.xml

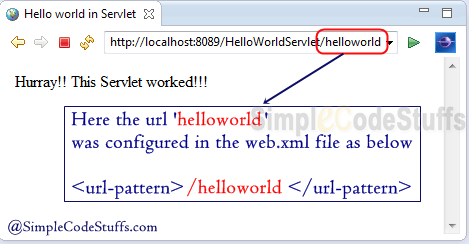

Now if you try to access the project via http://localhost:8089/HelloWorldServlet/helloworld then the following output is obtained.

Run-hello-world-servlet2

Hope you understood how this servlet mapping occurs in java web application.
